COLORFAN 1XL Low Noise Small Size Aluminum Sickle Axial Fan Blade
| Model | 1XL Blade |
|---|---|
| Material | Aluminum Alloy |
| Blade number options | 3, 4, 6, 8, 10, 12, 14 blades |
| Angle | 20 -50 degree |
| Temperature | -40℃ to 150℃ |
| Rotate Direction | Clockwise or anti-clockwise |
| Direction | Air blowing or Air suction |
| Application | refrigeration equipment, compressors, condensers, construction machinery, cooling devices, dry cooling towers, electric motors, evaporative cooling towers, forklifts, gearboxes, power generation equipment, agricultural harvesters, dry hot air generators, hovercraft, engineering machinery etc |

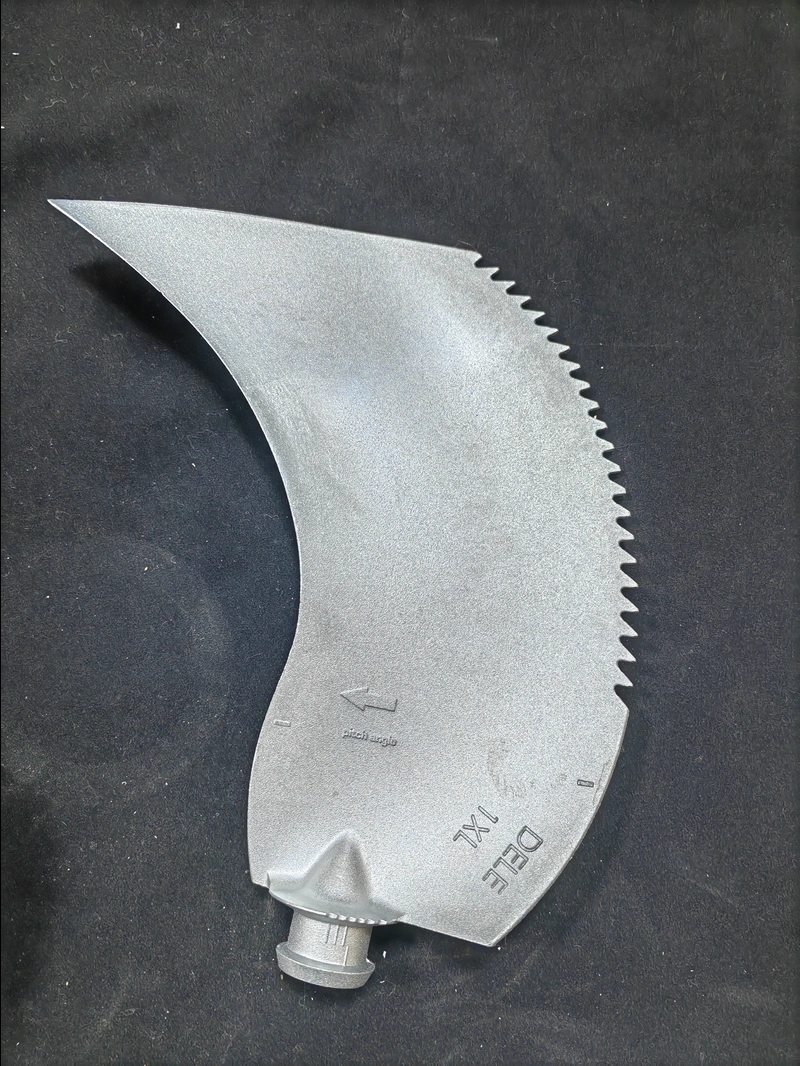

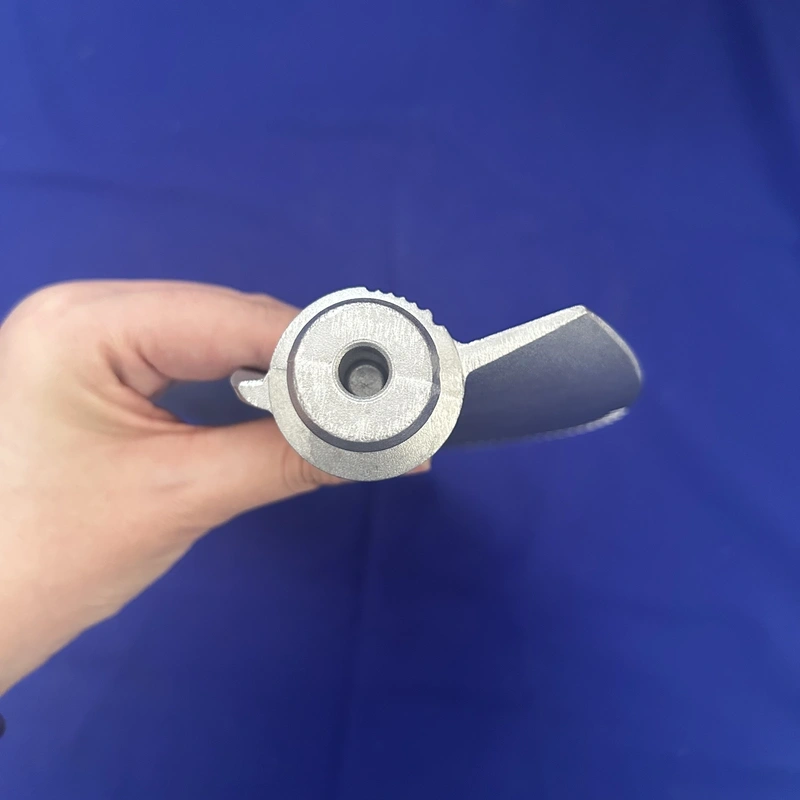

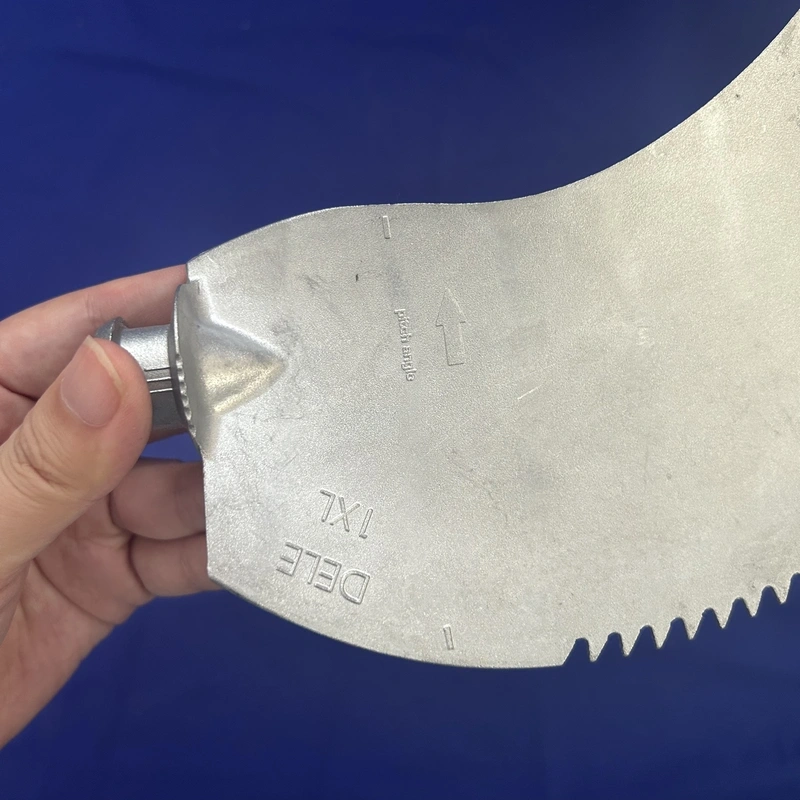

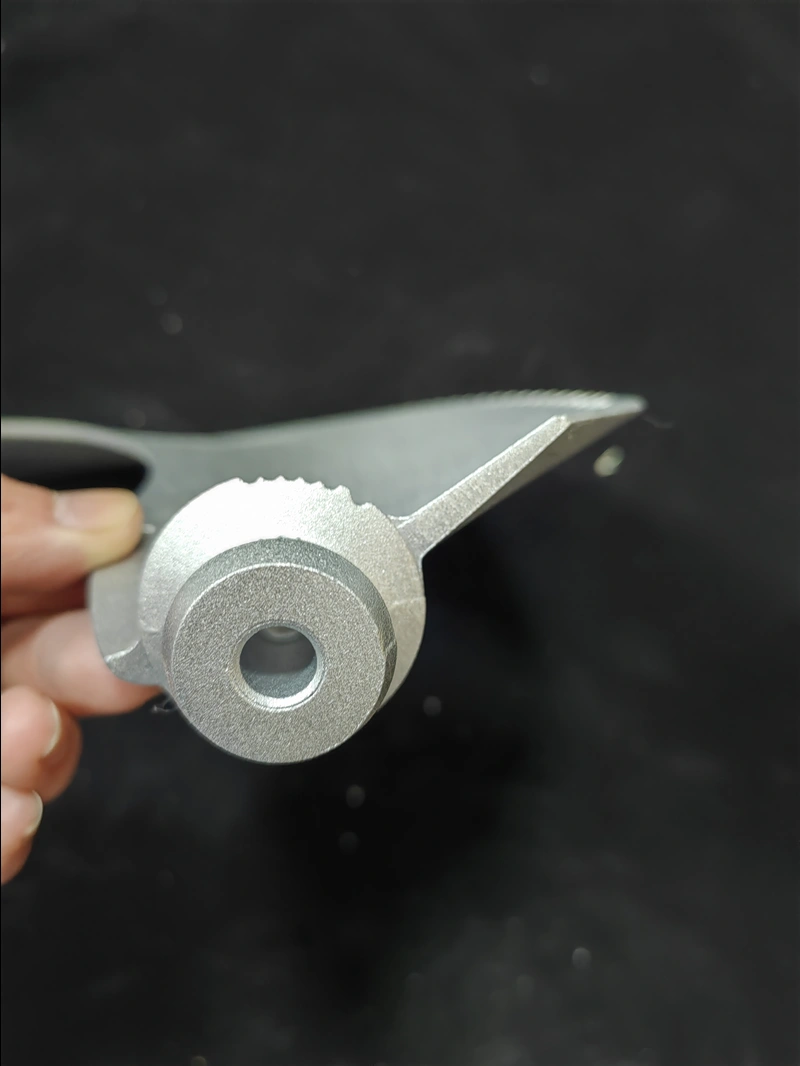

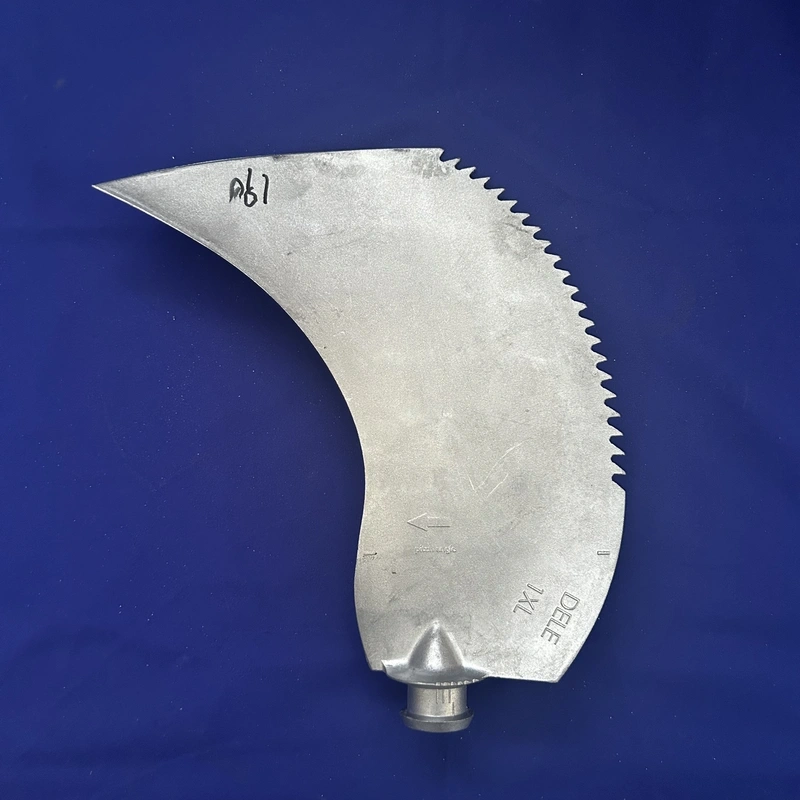

1XL fan blade is aluminum alloy material whole shapness is serrated. This serrated sickle fan blade will make low noise while axial fan working. Alloy blade can be temperature in -40℃ to 150℃. Fan blade length ranges from 10-35cm. Only anticlockwise is available.
| Model | 1XL Blade |
|---|---|
| Material | Aluminum Alloy |
| Blade number options | 3, 4, 6, 8, 10, 12, 14 blades |
| Angle | 20 -50 degree |
| Temperature | -40℃ to 150℃ |
| Rotate Direction | Clockwise or anti-clockwise |
| Direction | Air blowing or Air suction |
| Application | refrigeration equipment, compressors, condensers, construction machinery, cooling devices, dry cooling towers, electric motors, evaporative cooling towers, forklifts, gearboxes, power generation equipment, agricultural harvesters, dry hot air generators, hovercraft, engineering machinery etc |
NANJING COLORFAN TECHNOLOGY CO., LTD specializes in the design and manufacture of high-quality axial fans, draught fans, and cooling fans. With fan diameters ranging from 145 mm to 2200 mm, our products are widely used in wind power projects, diesel generators, engineering vehicles, cooling towers, and industrial ventilation systems.
Supported by advanced manufacturing facilities and experienced engineers, we focus on delivering reliable performance, durable quality, and efficient cooling solutions. Our commitment to innovation and customer satisfaction has earned the trust of clients in domestic and international markets.
Of course, we support sample service after confirming your demand, including blade model, flange or axle sizes, blow direction etc.
The quality for bulk order would be exactly same as the sample ones.
Yes, all fans can be replaced. We can customize the connection holes and bushings, to confirm the fan can be fitted.
Besides, we will balance and match the angle to the power speed to ensure its safety.
Yes, our factory is located in Changzhou, JiangSu. We produce and export series of cooling fan, axial fan, draught fan etc with high-end quality. Our factory has 60 people’ team and four departments including fan manufacturing, mould processing, injection molding and wind tunnel test. Products range from fields of engineering machinery, engine, cooling machines, central air-conditioning, refrigeration equipment, screw air compressor,
wind power equipment etc.
Annually 300K pieces.
No matter sample or bulk order, the delivery time would be around 5-15 days.
If you need the customization of the shapeness or color on fan blades, delivery time would be longer accordingly.
First, contact our sales and show them the specification or images of what kind of fans you want. Second, our technics will check which model would be most suitable for you. And sales will quote you the detailed price and shipping cost for your comparison.
a) Drive mode: motor/engine (offer drawing: power/pole number/rotate speed/axle pole);
b) Connection mode: Flange/ Axle (taper bushing);
c) Application: For example ventilation, heat ejection, fog gun, graziery;
d) Do you want us to install the complete machine (including motor, wind canister etc);
e) Your operation point (temperature, height, air volume, air pressure);
f) Installation mode: clockwise or anticlockwide
g) Blade diameter etc.
