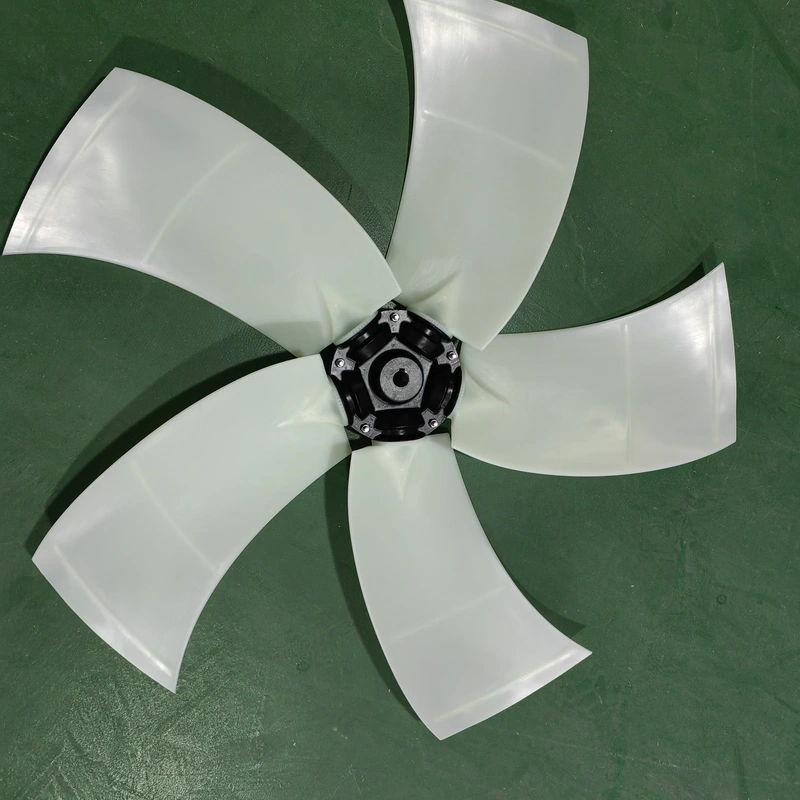

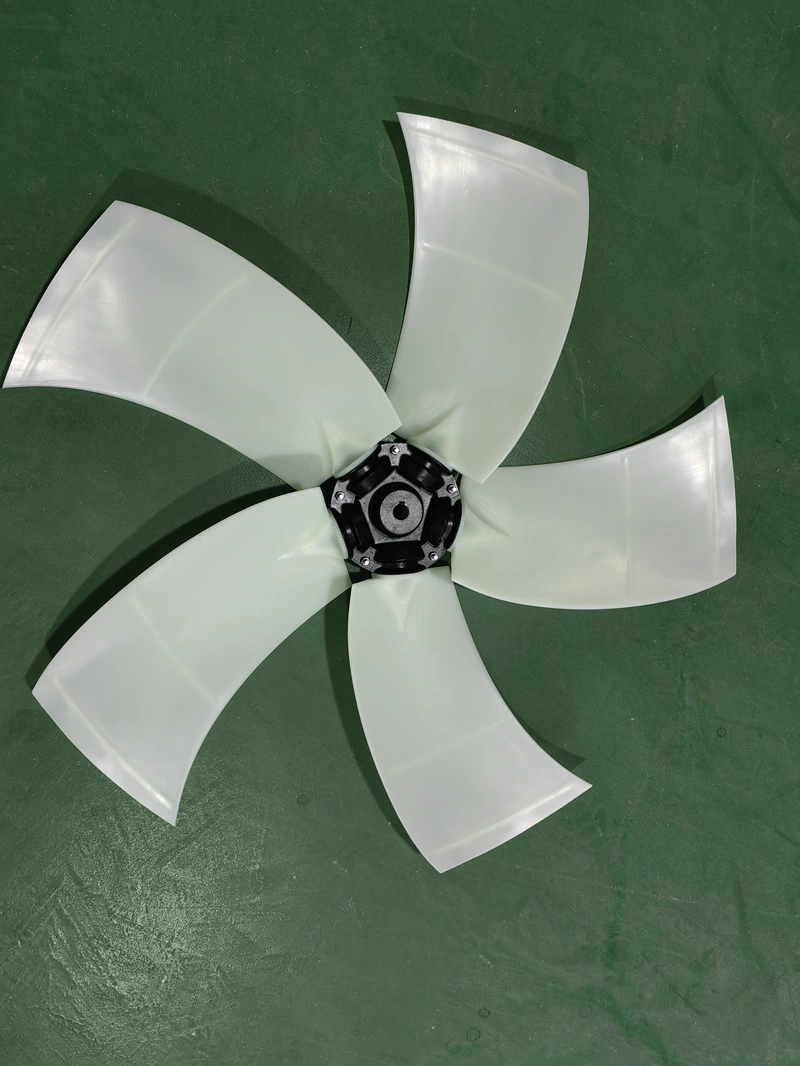

Medium Size Plastic Sickle Axial Fan 7XL - NANJING COLORFAN TECHNOLOGY CO.,LTD

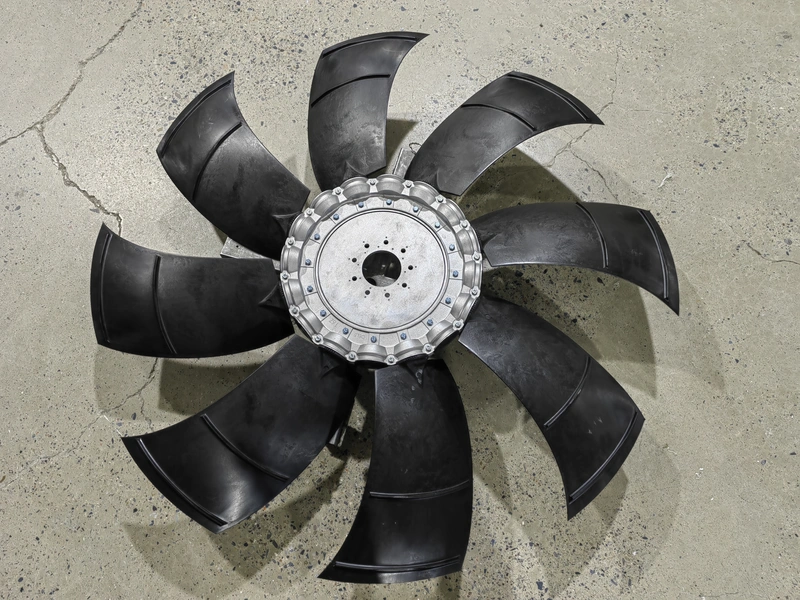

Name: Medium Size Plastic Sickle Axial Fan 7XL
Brand: NANJING COLORFAN TECHNOLOGY CO.,LTD
Availability: InStock

Model

7XL

Material

Plastic

Fan diameter

378-1146mm

Blade number options

3, 4, 6, 8, 10, 12, 14, 16 blades

Angle

20 -50 degree

Temperature

-40℃ to 150℃

Rotate Direction

Clockwise or anti-clockwise

Direction

Air blowing or Air suction

Application

refrigeration equipment, compressors, condensers, cooling towers, electric motors, evaporative cooling towers, forklifts, gearboxes, power generation equipment, agricultural harvesters, internal combustion engines, sanitation vehicles, transformers, special vehicles etc

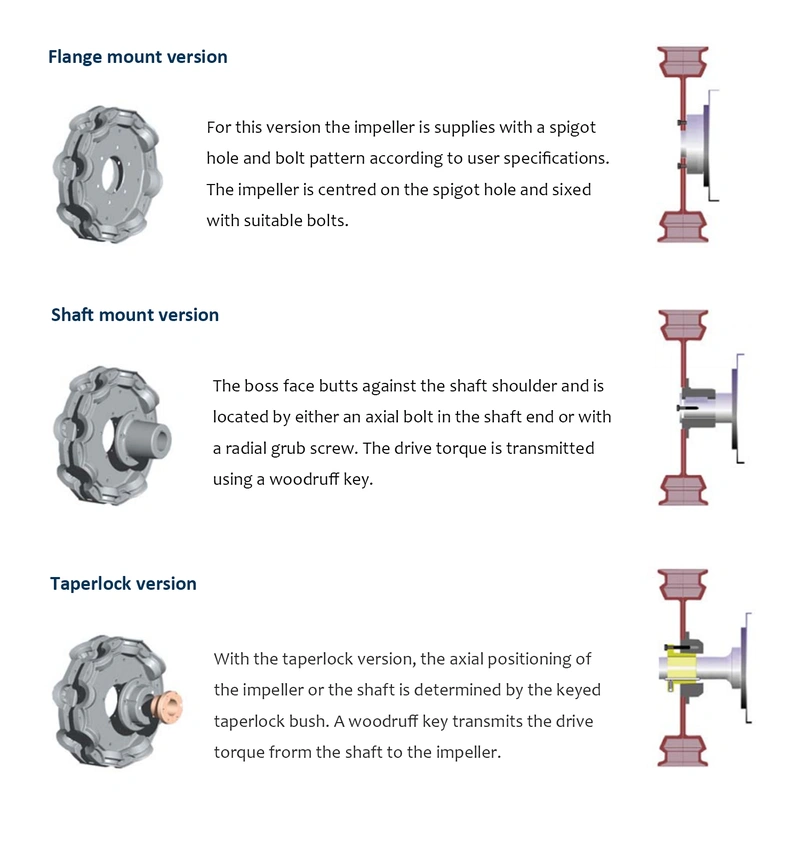

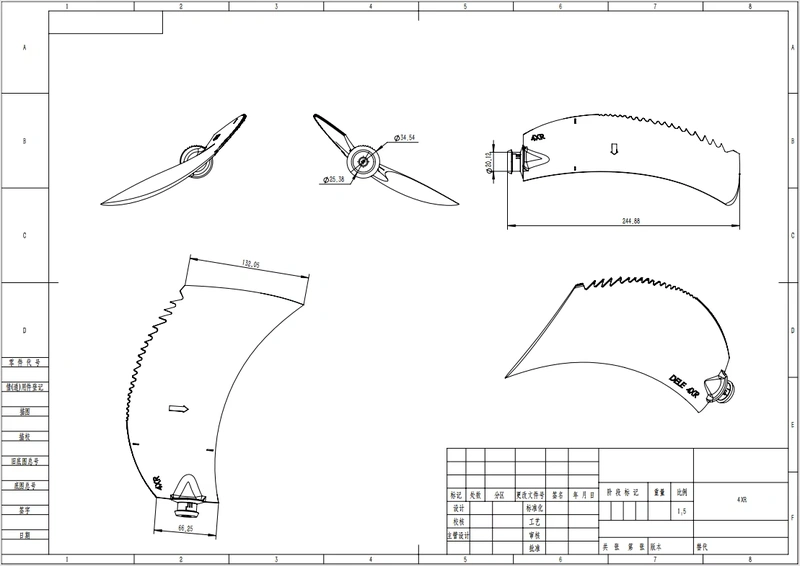

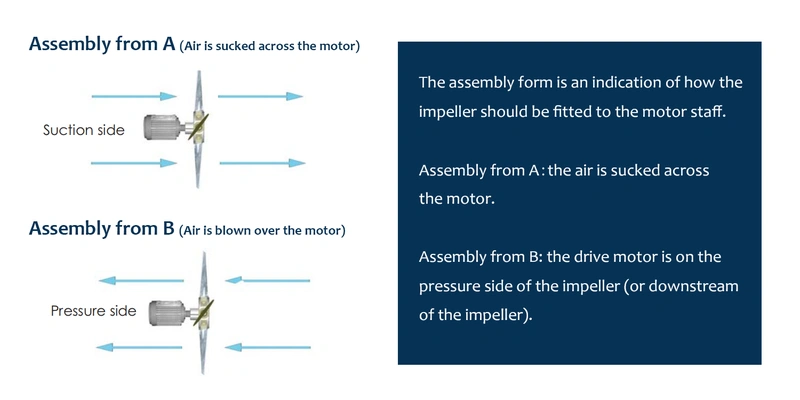

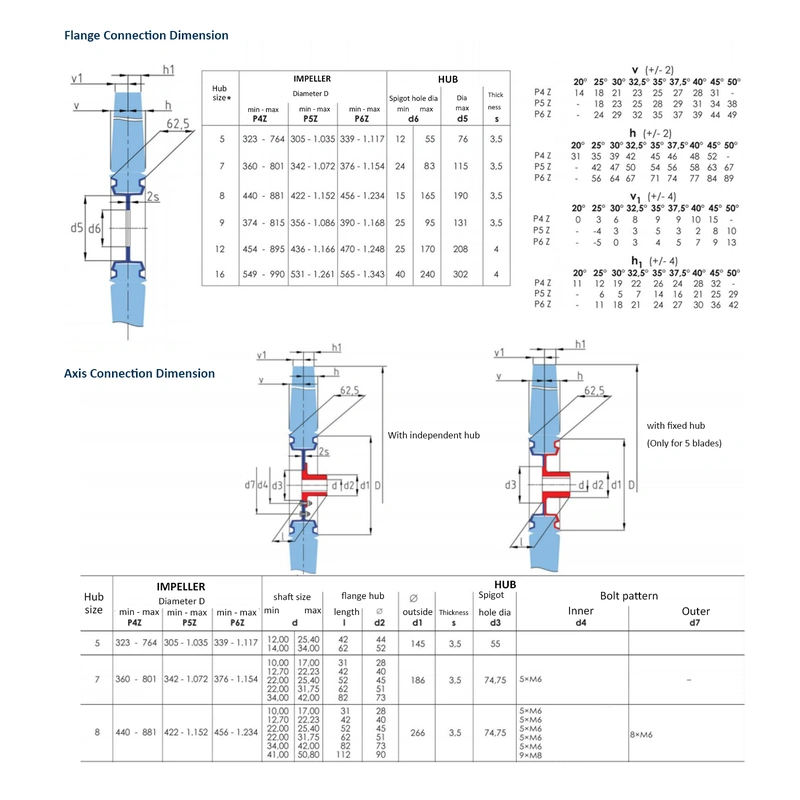

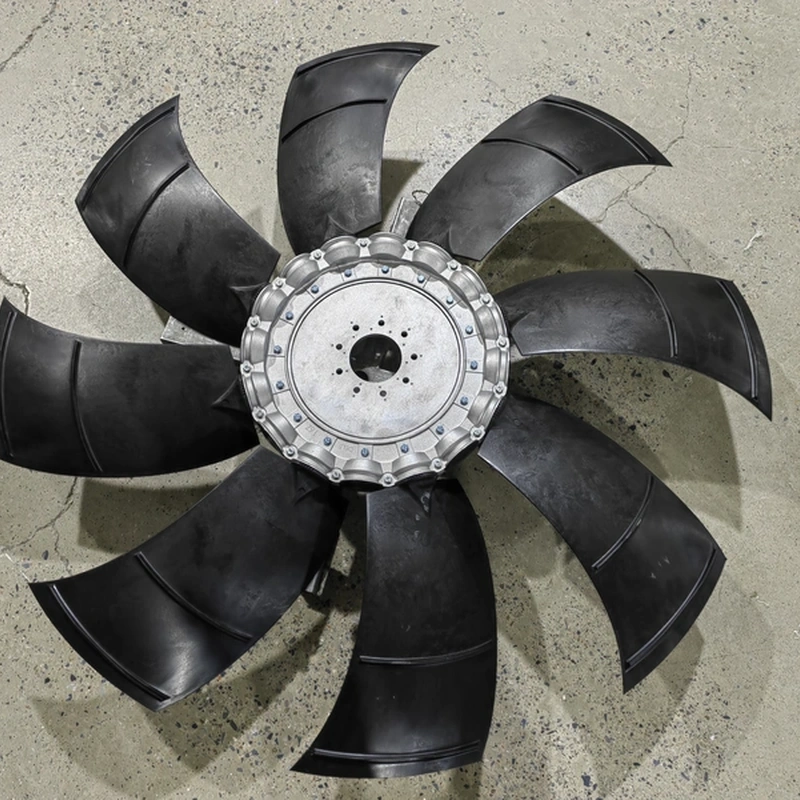

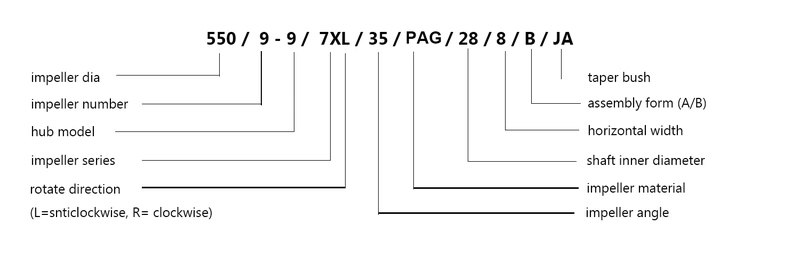

7XL series axial fan is a serrated scimitar-shaped fan. Both flange and bushing are aluminum material. Its advantage is bearing high pressure and with low noise. Its excellent performance can meet cooling requirements of most types of engines. Mount version can be flange, shaft or taperlock. Assembly form (A or B) is decided by customer’s request.

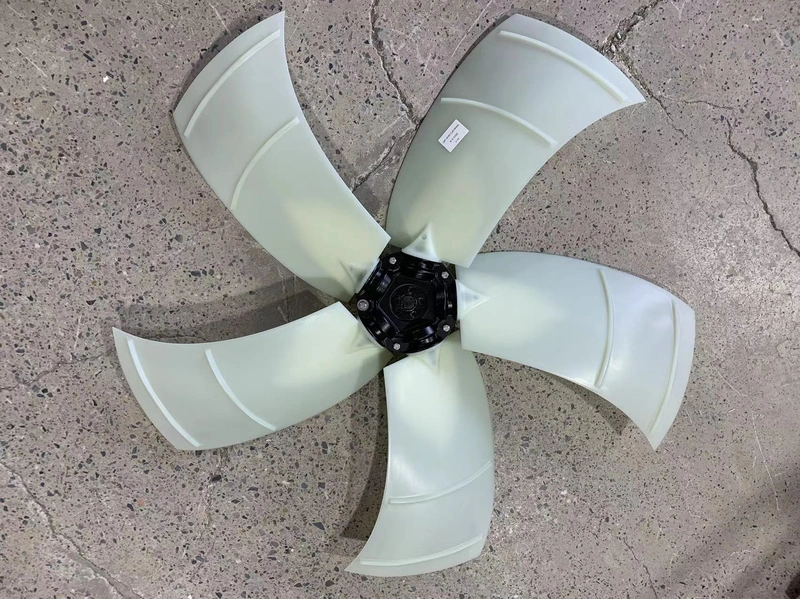

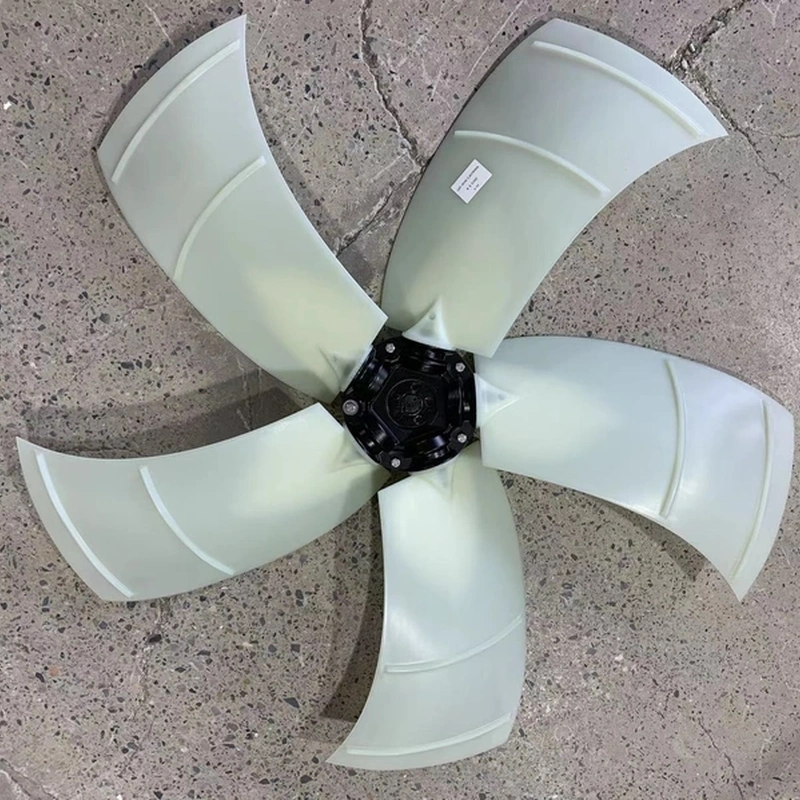

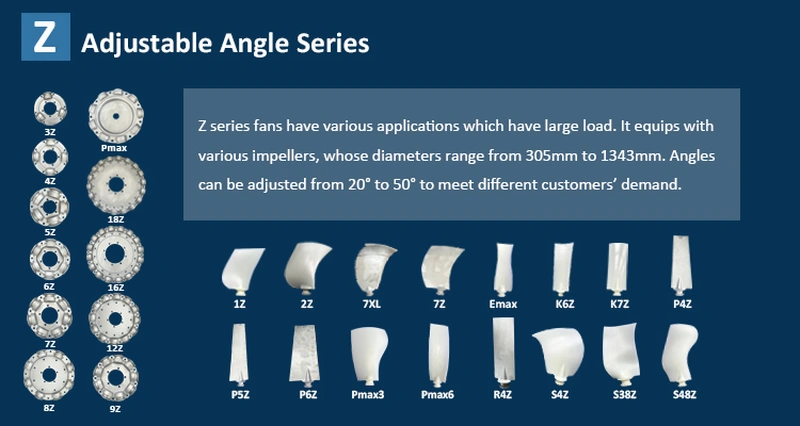

7XL is a medium size plastic axial fan whose diameter range from 378-1146mm. While the blade angles can also be adjusted from 25 ° to 50 ° to meet customers’ different application requirements. Blades injection molded from plastic Nylon 6 (also called “PAG”) have some notable features. The blades are in high-strength. Meanwhile, plastic PAG axial fans can bear temperature from -40℃ to 120℃ with no deformation. The serrated blades will make blades perform with low noise.

Model	7XL
Material	Plastic
Fan diameter	378-1146mm
Blade number options	3, 4, 6, 8, 10, 12, 14, 16 blades
Angle	20 -50 degree
Temperature	-40℃ to 150℃
Rotate Direction	Clockwise or anti-clockwise
Direction	Air blowing or Air suction
Application	refrigeration equipment, compressors, condensers, cooling towers, electric motors, evaporative cooling towers, forklifts, gearboxes, power generation equipment, agricultural harvesters, internal combustion engines, sanitation vehicles, transformers, special vehicles etc
