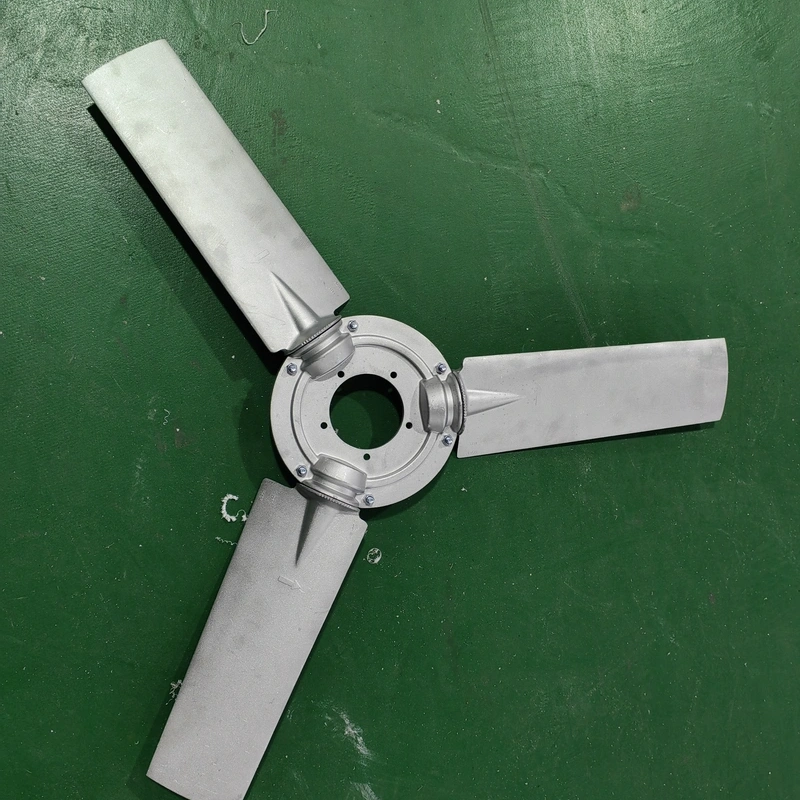

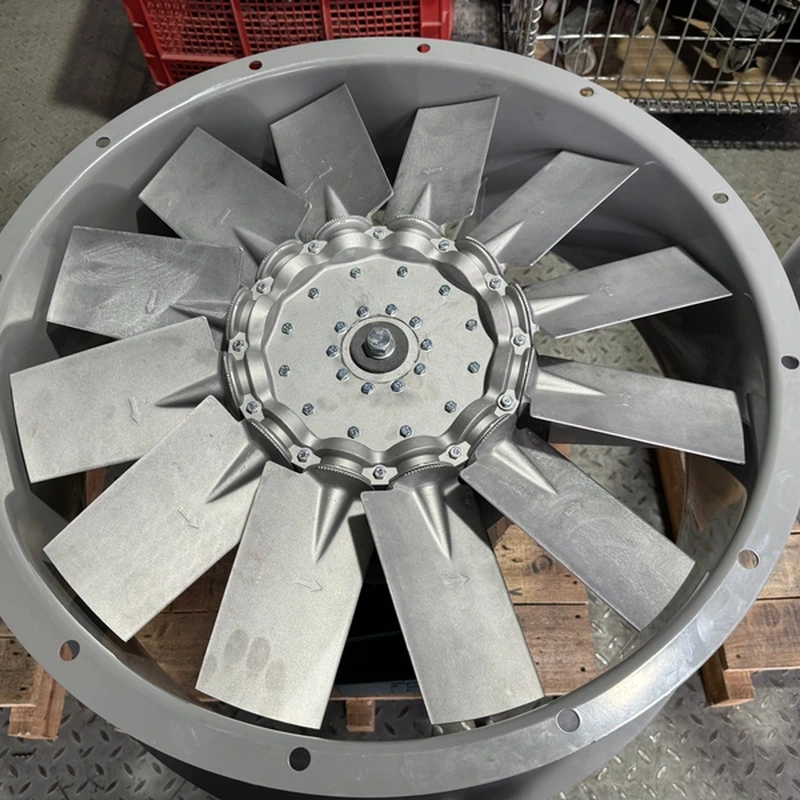

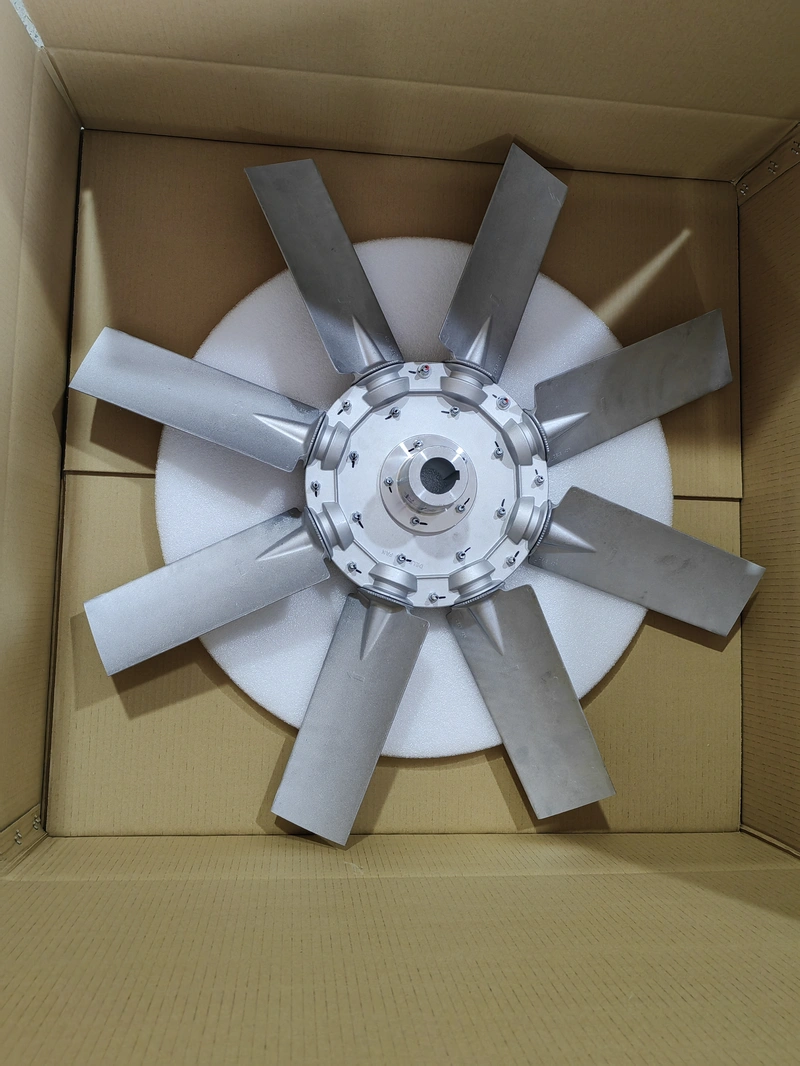

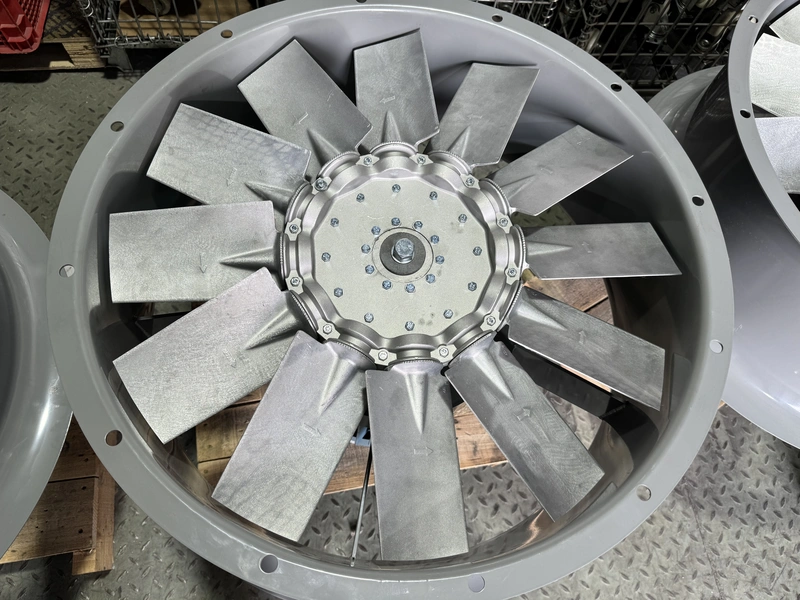

Medium Size Aluminum Axial Fan P4Z - NANJING COLORFAN TECHNOLOGY CO.,LTD

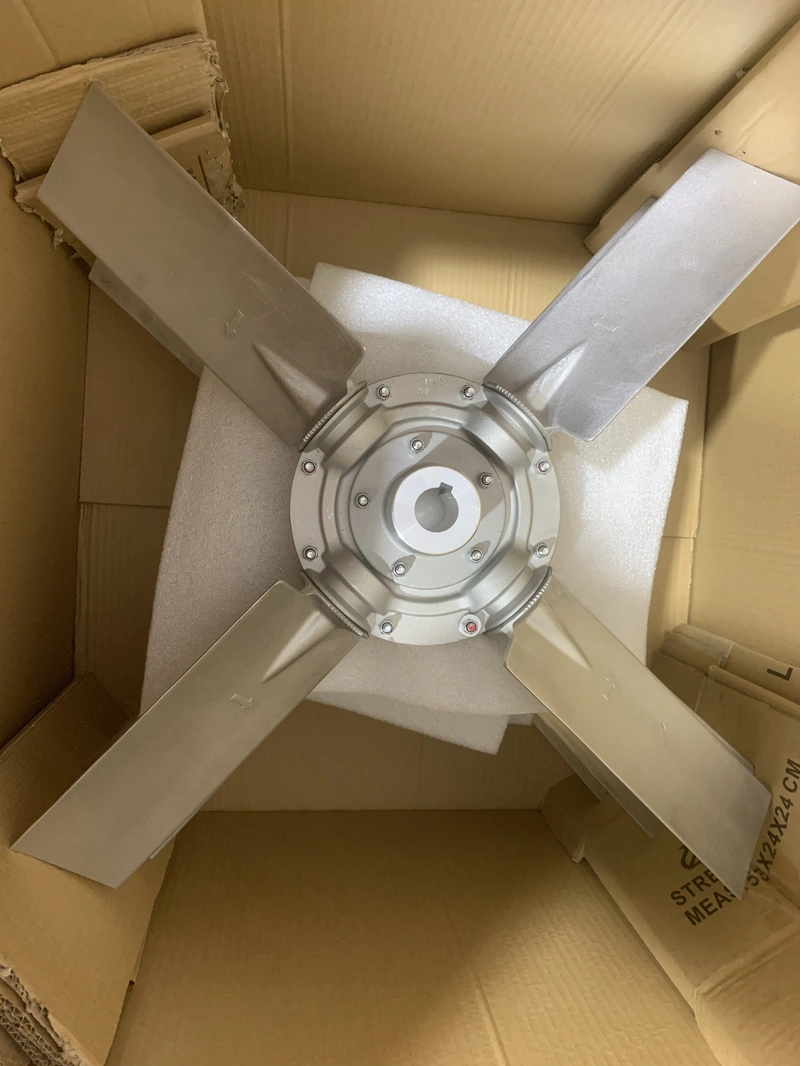

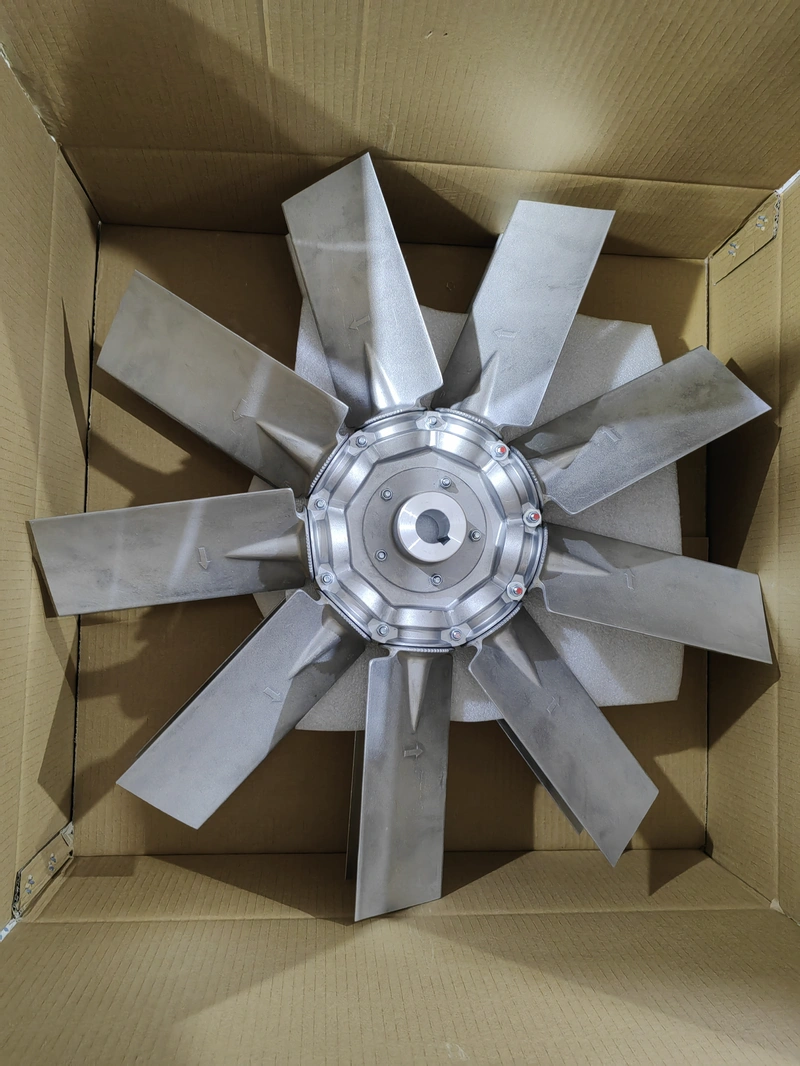

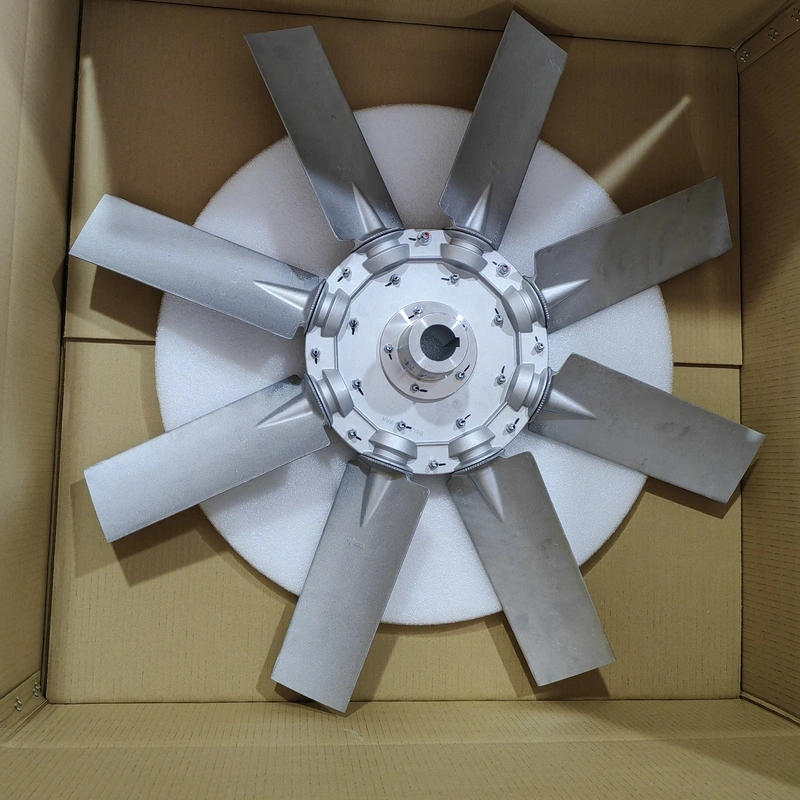

Name: Medium Size Aluminum Axial Fan P4Z
Brand: NANJING COLORFAN TECHNOLOGY CO.,LTD
Availability: InStock

Model

P4Z

Material

Aluminum Alloy

Fan diameter

319-1019mm

Blade number options

3, 4, 5, 6, 7, 8, 9, 12, 16 blades

Angle

20 -50 degree

Temperature

-40℃ to 150℃

Rotate Direction

Clockwise or anti-clockwise

Direction

Air blowing or Air suction

Air Volume

8100-69000 m3/h

Application

Air conditioning equipment, ceramic industry, refrigeration equipment, compressors, condensers, construction machinery, cooling devices, dry cooling towers, electric motors, evaporative cooling towers etc

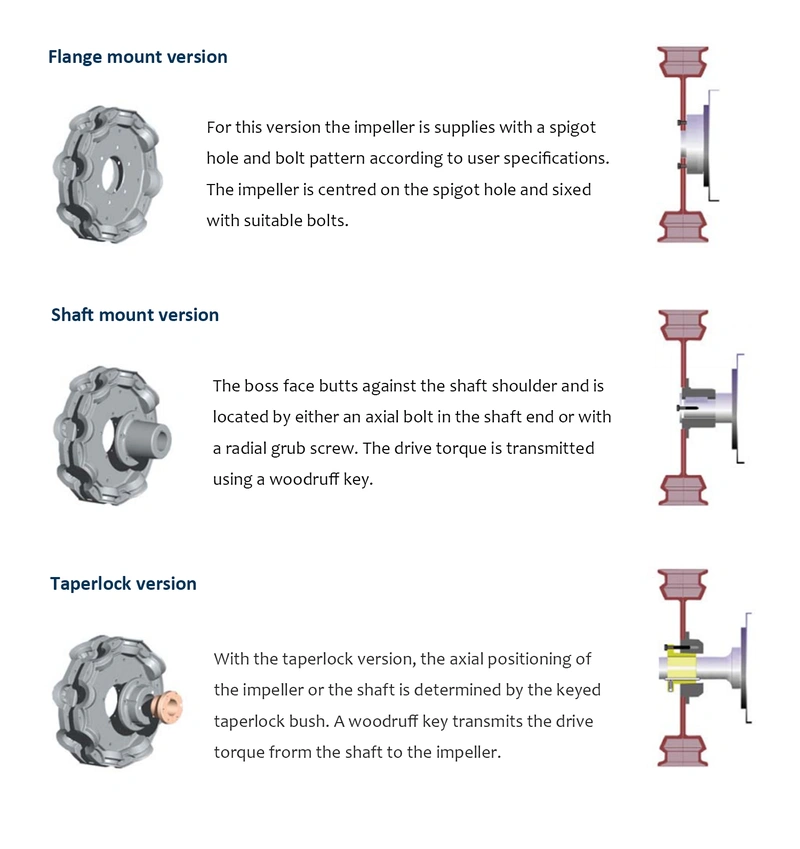

P4Z Medium Size Aluminum Axial Fan apply in a wide range of applications including HVAC, compressors and engine driven equipment etc. The blade is designed to ensure that the flow rate of the airflow through the blade remains very uniform throughout the blade’s surface to achieve optimum fan performance. Both flange and impellers are aluminum material. Its excellent performance can meet cooling requirements of most types of engines. Mount version can be flange, shaft or taperlock.

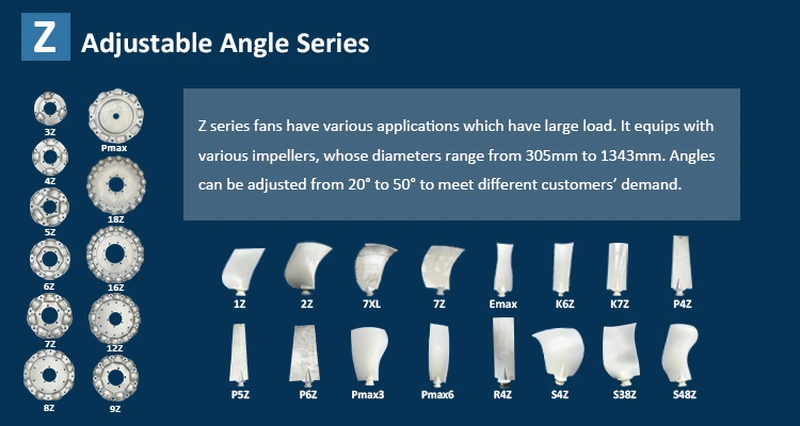

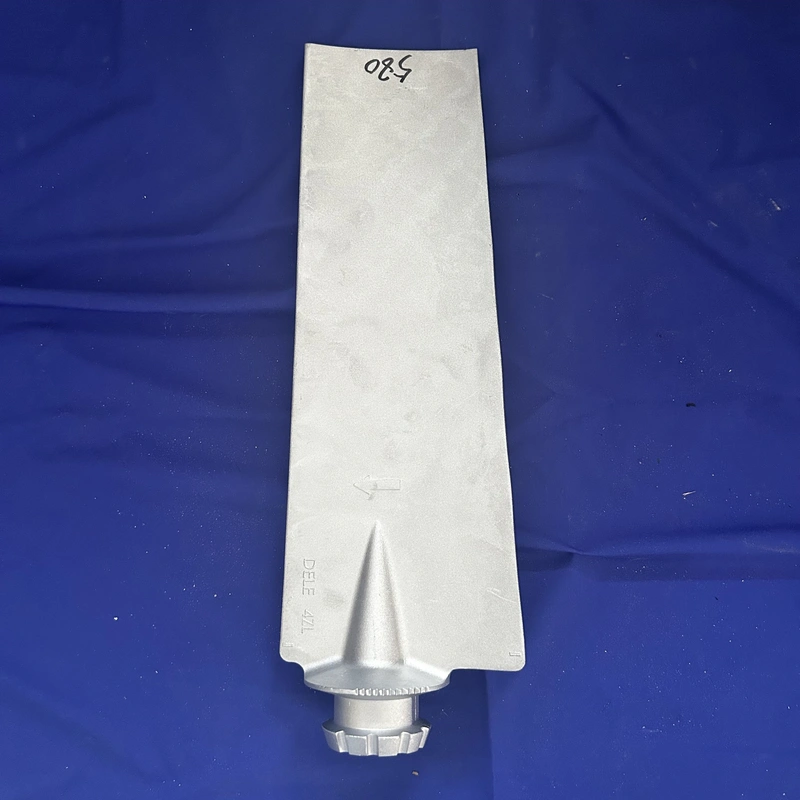

P4Z is a medium size alloy axial fan whose diameter range from 319-1019mm. While the blade angles can also be adjusted from 25 ° to 50 ° to meet customers’ different application requirements. Blades injection molded from die cast aluminum alloys have some notable features. The blades are in high-strength and corrision-proof. Meanwhile, aluminum axial fans can bear temperature from -40℃ to 150℃ with no deformation.

Model	P4Z
Material	Aluminum Alloy

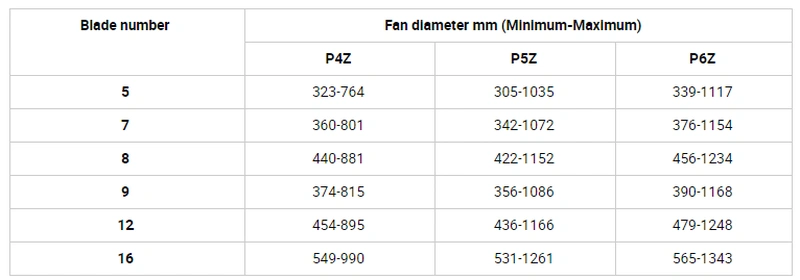

Fan diameter	319-1019mm
Blade number options	3, 4, 5, 6, 7, 8, 9, 12, 16 blades
Angle	20 -50 degree
Temperature	-40℃ to 150℃
Rotate Direction	Clockwise or anti-clockwise

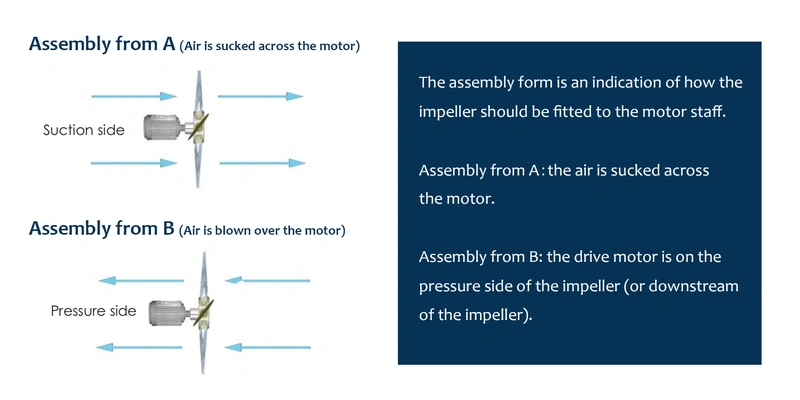

Direction	Air blowing or Air suction
Air Volume	8100-69000 m3/h
Application	Air conditioning equipment, ceramic industry, refrigeration equipment, compressors, condensers, construction machinery, cooling devices, dry cooling towers, electric motors, evaporative cooling towers etc
